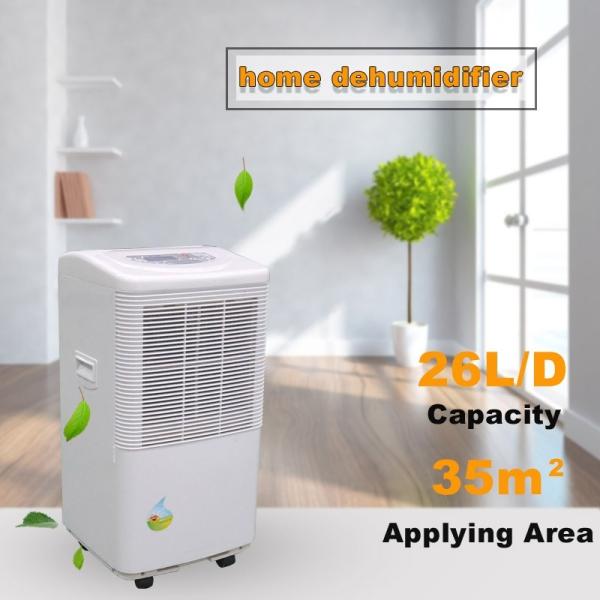

220V Portable 10℃-38℃ Fully Automatic Industrial Dehumidifier

What is an industrial dehumidifier?

Industrial refrigerated dehumidifiers operate by using accepted refrigeration practices to lower the dew point of the facility's incoming air. ... The moisture from the air condenses on cold evaporator coil fins into droplets as the water in the air reaches its dew point.

Application

Fuda dehumidifiers clear the air in damp interior spaces. Condensation is removed from windows, walls and ceilings. Stuffy air is drawn off and dry air is pumped back in. You simply set the dial and air humidity remains at the desired level. The dehumidifiers are energy savers.

Specification

Fuda dehumidifiers are effective solutions to environmental control problems. The ranges of units are high capacity dehumidifiers, made to operate at high efficiencies by removing moisture from the air through the refrigeration process. Than fan draws the moist air through the cold evaporator coil, which cools the air below its dew point. Moisture forms on the evaporator coil and is collected in condensate tray before draining away through the condensate tube. The cooled air then passes through the hot condenser coil where it is reheated using the same energy removed during the cooling phase, plus the additional heat generated by compressor. The air is, therefore, discharged from the dehumidifiers at a slightly higher temperature with a lower absolute humidity than that which entered. Continuous circulation of air through the dehumidifier gradually reduces the relative humidity within the area.

Features

1. Adjustable control humidistat to maintain the level of dryness
2. A convenient drain point for condensate collection of hose attachment.
3. Self-contained for quick and easy installation- No duct work required.
4. Automatic defrost at ambient temperature below 18 C
5. Fitted with caster wheels, easy to move.
6. Can be ducted if desired
7. Sturdy military-type carrying handles
8. Totally enclosed coils in an epoxy-coated.
9. Simplicity of installation and operation.
10. Optional inlet/ outlet duct flanges

Process Flow

Main Parameters(Test condition: T=27℃,RH=70%)

Hangzhou Fuda Dehumidification Equipment Co., Ltd. is a national high-tech enterprise and one of the earliest established manufacturers in China specializing in research and development as well as manufacturing of desiccant rotor dehumidifiers. The company also provides design and installation services for various HVAC projects. In 1995, our company was founded by an engineer who participated in the research and trial manufacture of the first desiccant rotor dehumidifier in China. We have a team of professional technicians with 40 years of experience in R&D, structure design, production, installation, and adjustment of desiccant rotor dehumidifiers. We have established a complete set of scientific production, assembly, and adjustment criteria and own international advanced Vaisala temperature and humidity meters and low dew point test instruments. Our rigorous testing method guarantees the advancement, stability, and dependability of "Fuda" products.

Fuda Company has been focusing on integrating advanced technology from both domestic and international sources since its establishment. It collaborates with renowned international manufacturers of silica gel and molecular sieve rotors such as Sweden Proflute and America Coobase. By promptly collecting market information, extracting valuable insights, and prioritizing research development and innovation, the company continuously enhances product quality, positioning Fuda products as leaders in China. Our company places significant emphasis on scientific and technological innovation, research, and development, and leverages the expertise and experimental equipment of the China University of Metrology to jointly develop advanced, newly designed, sophisticated, energy-efficient, and environmentally friendly dehumidification equipment. In recent years, Fuda Company has been honored with the titles of National High-tech Enterprise, Hangzhou Economic-Technological Development Zone Science and Technology Enterprise, and Hangzhou High-tech Enterprise. The company currently holds 4 invention patents, 25 utility model patents, and 14 provincial new products.

Fuda products are widely utilized in various industries, including military, nuclear power, railway, shipbuilding, biopharmaceuticals, food, lithium battery, medical instruments, fine chemicals, rubber tires, electronic instruments, safety glass, film, plastic, wood molding, fruit and vegetable cold storage, power equipment, university laboratories, warehouses, libraries, hospitals, hotels, swimming pools, and villas. These products have been exported to North America, South America, Europe, the Middle East, Southeast Asia, and other regions, such as the United States, the UK, Italy, Australia, Brazil, Japan, Saudi Arabia, Oman, Uzbekistan, Pakistan, Bangladesh, Indonesia, Sri Lanka, the Philippines, Thailand, Egypt, Algeria and so on.

Thanks to 40 years of experience in dehumidification, Fuda Company has become a renowned brand in the field of domestic desiccant rotor dehumidifiers. They specialize in providing constant temperature and constant humidity dehumidification systems for various industries. These systems are part of turnkey projects that integrate temperature and humidity control, water, electricity, and cleanliness. Fuda Company is highly praised by customers both at home and abroad for their expertise in dehumidification.
