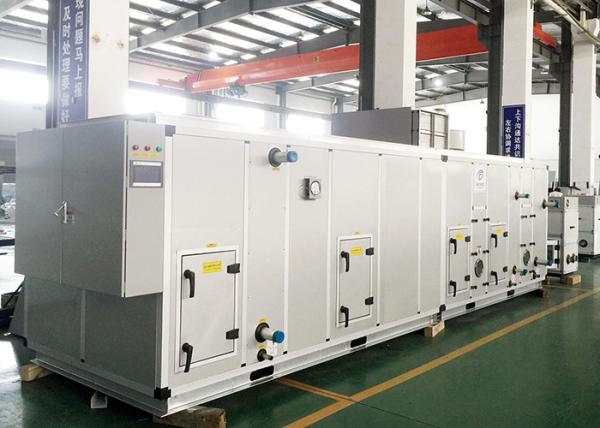

10000m3/h Fully Automatic Industrial Desiccant Dehumidifier Made in China
When considering an industrial desiccant dehumidifier made in China for pharmaceutical applications like capsule production, it's important to carefully evaluate the quality, performance, and compliance aspects of the equipment. Here are some key points to consider:
By carefully evaluating these factors, you can identify a high-quality, reliable, and compliant industrial desiccant dehumidifier made in China that will meet the specific requirements of your pharmaceutical capsule production facility.
Main Parameters:
Model | ZCB—10000 |
Process Airflow(m3/h) | 10000 |
Requirements | T≤10-12℃, RH≤30%-40% |
Fresh Airflow(m3/h) | 500 |
First Return Airflow(m3/h) | 9500 |
Rotor Process Airflow(m3/h) | 10000 |
Rotor Reactivation Airflow(m3/h) | 3300 |
Parameter of Supply Air | T=12℃, RH≤30% |
Reactivation Temperature | 120±10℃ |
Reactivation Steam Consumption(kg/h) | 140, 0.4mPa |
Reactivation Fan Power(kw) | 2.2 |
Blower Power(kw) | 11 |
Driving Motor Power(kw) | 0.2 |
Cooling Load(kw) | 89.6 |
Chilled Water Consumption(T≤5℃) (T/h) | 15.4 |
Power Supply | 380V, 3P, 50Hz |
Installed Power(kw) | 13.4 |
ESP(External Static Pressure) (Pa) | ≥800 |
User Friendly HMI:
Application:
Desiccant dehumidifiers have a wide range of applications, particularly in industries where precise humidity control is crucial. Here are some of the common applications of desiccant dehumidifiers:
We can make suitbale dehumidifying solution for you according to your requirements, contact us now.
![]() |
