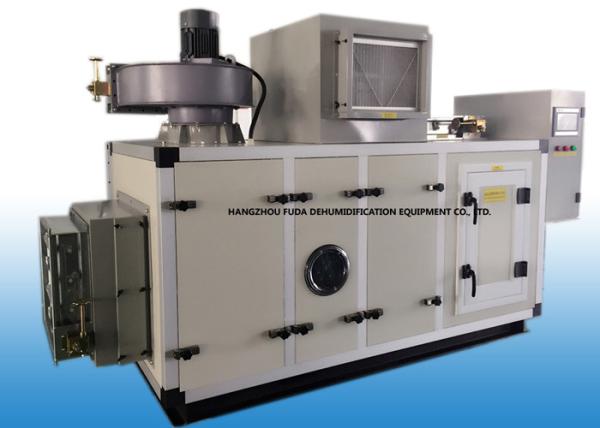

Pharmaceutical / Food Desiccant Wheel Air Dehumidifier Equipment

Quick Details:

Style: Wheel adsorption
Desiccant Rotor: Sweden Proflute
Desiccant Material: Silica Gel
Rated Process Airflow: 3000m³ /h
Rated Dehumidifying Capacity: 23.8kg/h
Dehumidification Efficiency: High
Installed Power: 28.2kw
Voltage: 380V/3 phase/50Hz or customized
Certification: ISO9001:2008
Features: Economical, energy-saving
Usage: Air humidity control

Applications:

• War Industry, Scientific Research, Electric Power Transportation
• Lithium Battery Industry, Biotechnology Pharmaceutical Industry
• Chemical, Daily Chemical Industry, Food Beverage Industry
• Safety Glazing Material Industry, Tyre and Rubber Industry
• Medical Instrument, Vegetables Frozen, Precise Instrument
• Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

General Description:

ZCS-3000 Desiccant Wheel Dehumidifier removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, "Fuda" with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.

Competitive Advantage:

• Good dehumidifying capacity
• Compact structure,
• Stability and reliability,
• Easy operation and maintenance

Specifications:

Hangzhou Fuda Dehumidification Equipment Co., Ltd. is a national high-tech enterprise and one of the earliest established manufacturers in China specializing in research and development as well as manufacturing of desiccant rotor dehumidifiers. The company also provides design and installation services for various HVAC projects. In 1995, our company was founded by an engineer who participated in the research and trial manufacture of the first desiccant rotor dehumidifier in China. We have a team of professional technicians with 40 years of experience in R&D, structure design, production, installation, and adjustment of desiccant rotor dehumidifiers. We have established a complete set of scientific production, assembly, and adjustment criteria and own international advanced Vaisala temperature and humidity meters and low dew point test instruments. Our rigorous testing method guarantees the advancement, stability, and dependability of "Fuda" products.

Fuda Company has been focusing on integrating advanced technology from both domestic and international sources since its establishment. It collaborates with renowned international manufacturers of silica gel and molecular sieve rotors such as Sweden Proflute and America Coobase. By promptly collecting market information, extracting valuable insights, and prioritizing research development and innovation, the company continuously enhances product quality, positioning Fuda products as leaders in China. Our company places significant emphasis on scientific and technological innovation, research, and development, and leverages the expertise and experimental equipment of the China University of Metrology to jointly develop advanced, newly designed, sophisticated, energy-efficient, and environmentally friendly dehumidification equipment. In recent years, Fuda Company has been honored with the titles of National High-tech Enterprise, Hangzhou Economic-Technological Development Zone Science and Technology Enterprise, and Hangzhou High-tech Enterprise. The company currently holds 4 invention patents, 25 utility model patents, and 14 provincial new products.

Fuda products are widely utilized in various industries, including military, nuclear power, railway, shipbuilding, biopharmaceuticals, food, lithium battery, medical instruments, fine chemicals, rubber tires, electronic instruments, safety glass, film, plastic, wood molding, fruit and vegetable cold storage, power equipment, university laboratories, warehouses, libraries, hospitals, hotels, swimming pools, and villas. These products have been exported to North America, South America, Europe, the Middle East, Southeast Asia, and other regions, such as the United States, the UK, Italy, Australia, Brazil, Japan, Saudi Arabia, Oman, Uzbekistan, Pakistan, Bangladesh, Indonesia, Sri Lanka, the Philippines, Thailand, Egypt, Algeria and so on.

Thanks to 40 years of experience in dehumidification, Fuda Company has become a renowned brand in the field of domestic desiccant rotor dehumidifiers. They specialize in providing constant temperature and constant humidity dehumidification systems for various industries. These systems are part of turnkey projects that integrate temperature and humidity control, water, electricity, and cleanliness. Fuda Company is highly praised by customers both at home and abroad for their expertise in dehumidification.
